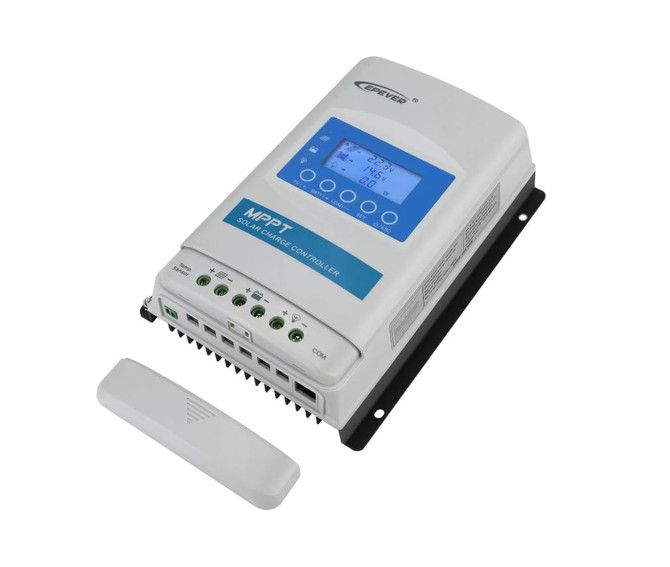

MPPT 40Amp Solar Panel Regulator Controller
Description
Features:
Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
Maximum DC/DC transfer efficiency is as high as 98 %, full load transfer efficiency is up to 97.4 %
Wide MPP operating voltage range
Low-temperature protection and self activate the function for lithium battery charging
Limit charging power & current overrated range
Real-time energy statistics function
Multiple load work modes
Comprehensive electronic protection
Compatible with lead-acid and lithium-ion?batteries
Over-temperature protection and power degrading in higher temperature
Optional LCD display units (XDB1/XDS1/XDS2) and accessories
High quality and low failure rate components of ST or IR to ensure the service life
Isolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
Monitor and set the parameters via the APP or PC software
Dustproof and waterproof design with IP32? protection class
CE certification(LVD IEC62109, EMC EN3/1-6-61000)
Specifications
System nominal voltage: 12/24VDC Auto (When a lithium battery is used, the system voltage can’t be identified automatically)
Rated charge/discharge current: 40A
Battery voltage range: 8~32V
Max. PV open circuit voltage: 92V At 25°c environment temperature, 100V At minimum operating environment temperature
Max. PV input power: 1040W when the battery system is 24V, 520W when the battery system is 12V
Battery type: Lead-acid battery(Sealed/Gel/Flooded/User), Lithium battery(LiFePO4, Li(NiCoMn)O2, User)
Dimension: 255 × 185 x 68mm (L x W x H)
Recommended cable: 6AWG(16mm2)
