Propex Malaga 5E 13L Water Heater Complete

QQ070741
Price:
$1,550.00
In Stock

Description

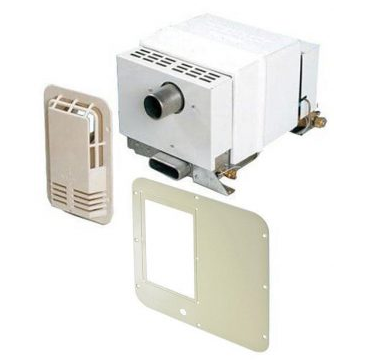

The Propex Malaga 5E Water Storage Heater with Carver/Henry Adapter Plate
This high capacity water storage heater with an efficient gas burner, and the additional benefit of a 750 watt electric heating element. This heater can provide a quick and efficient supply of hot water for showering and washing in touring and motor caravans.

When used with the adapter plate (supplied with the Malaga) this makes an excellent replacement for the Carver Cascade as well as the Henry Water Heater.


Features
Large 13 litre capacity – for longer washing and showering facilities
Efficient gas burner – for faster warm up
750W element – use on its own or with the gas burner for even faster hot water
Small flue terminal – neat appearance outside the caravan
Safe – combustion products are completely sealed from the caravan interior
Easy to fit and service – all controls accessible at the rear of the unit
Electronic control – turns on the heater at the flick of a switch and supervises burner operation
Automatic resettable overheat cut out
Compact dimension – more room to route pipework and ducting where necessary
Henry Water Heater replacement when flue adapter plate used
Micro-processor Controller Electronics
The Malaga 5 water heater is equipped with the latest Propex electronics for accurate digital control of the heater operation and safety functions. The switch panel features 2 on/off switches for independently selecting either “gas only” or “230v only” or both. The Green L.E.D. on the switch panel lets you know when the gas burner is operating and also, by flashing a certain amount of times, the Red LED indicates various fault conditions.

Technical Data
Dimentions Overall H 250mm x W 325mm x D 445mm
Weight Empty 9.3kg
Tank Capacity 13 litres
Water Temperature Thermostat Setting 70 °C
Overheat Thermostat Setting 90 °C

WATER SUPPLY
The heater will operate satisfactorily on either a system where the pump is controlled by the tap microswitches or the one controlled by a pressure switch. It must not be connect to mains water supply. Water connections can be provided to suit a range of standard fittings. Reinforced or semi rigid pipe must be used.
Pressure Relief Valve Settings 3 bar
Maximum Working Pressure 2 bar
Maximum Working Supply Pressure 1.9 bar
GAS SUPPLY
Heat Input 1.15kw 84g/h
Pressure Settings: Propane 37mbar
Butane 28mbar
Mixtures 30mbar
Injector Bray 960/40
Electrical Supply 12v DC
Gas Connection 8mm O.D.
Mains Electricity Supply 220/240vAC 50Hz Fused 5A

Safety and Quality
The Malaga and Malaga E heaters have been tested and comply with the following: 90/396/EEC gas appliance directive. 89/336/EEC EMC directive. 73/23EEC low voltage directive. It is manufactured under ISO 9001:2000 plus annex 11.3 gas directives 90/396EEC.

Installation Requirements
The heater should be floor mounted or suitably supported, normally in the bed box.
The flue is designed to pass through a vertical section of the caravan wall, structural sections of which should not be damaged.
The flue terminal position should not be closer than 300mm below an opening window or 600mm from a vertical corner.
Clearances required for installation and servicing: as seen from inside the caravan.

Clearances
LHS 240mm RHS 5mm
Rear 100mm Top 5mm

***MUST BE INSTALLED BY REGISTERED GAS FITTER OR WHALE AGENT FOR WARRANTY AND NZ GAS REGULATIONS***

As this is an electrical or gas item we are unable to accept ANY returns. Please be sure you are ordering the correct item and if you are unsure and need any assistance please contact us.

***ALL ELECTRICAL OR GAS PARTS & APPLIANCES MUST BE INSTALLED BY A REGISTERED ELECTRICIAN/GAS FITTER (OR BRAND AGENT) FOR WARRANTY PURPOSES AND NZ GAS REGULATIONS/ELECTRICAL COMPLIANCE. WARRANTY CLAIMS WILL REQUIRE RECIEPT OF INSTALLATION***
